IN-SERIES FILTER/CARBON SYSTEMS

REMOVE SUSPENDED SOLIDS AND ORGANICS IN ONE STEP

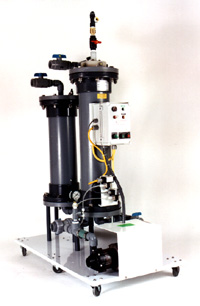

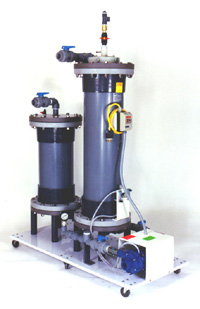

Global Filtrations System's "In-Series" models combine filtration and carbon treatment in one factory assembled combination system.  Available in 2 size ranges to cover a wide variety of bath sizes and flows.  Click on the links at the left for either the smaller model 8500 or the Large model 12500.  Each unit consists of a GFS Backflushing filter combined, on a single base, with a pre-plumbed carbon treatment chamber with two carbon charge sizes available.  This unique style of carbon treatment combined with our patented filtration technology provides a win/win combination for your process.  For Inorganic/Organic purification of your application, look to "In-Series" models from Global Filtration Systems



            Specifications

 APPLICATION FOCUS   For applications where both suspended solids and spent organics are a problem, IN-SERIES filter/carbon units are the answer,  They are perfect for solutions where continuous carbon treatment is a must, and as replacements for conventional disposable media combo-filters of up to 17 sq ft holding capacity.
Chamber PVC, CPVC, Polypro, others
Tubes PVC, CPVC, Metal Alloys
Elastomers Neoprene, Nitrile (Buna-N), Viton®, etc.
Filter Media Polypropylene is standard, others available.
Micron Sizes 1 - 100 available standard, Larger upon request.
Flow Rates varies with the size and pump configuration
Granular Carbon Charge 15-30 lbs, 8 x 20 mesh (Not Included).
